Type 721A
IEC60711 artificial ear
Introduction
The IEC 60711 Ear Simulator Type 721A is used for measurements on supra-aural and supra- concha earphones, both sealed and unsealed, intended for wideband telephony application (100Hz to 8kHz).
A complete test jig for acoustical measurements on earphones coupled to the ear by inserts such as tubes and ear moulds.
This design complies with the following IEC 60711Ed.1.OB Occluded-ear simulator for the measurement of earphones coupled to the ear by ear inserts.
Artificial Ears Type 721A consist of an acoustic coupler, acoustic condenser microphone and a base plate, which all parts are made of stainless steel and no any magnetic material.

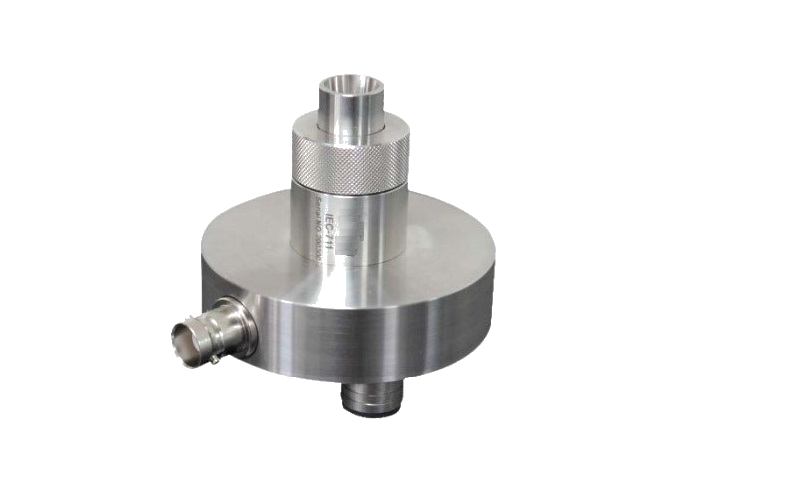

Fig. 721A
Features
•Conformed to IEC and ANSI standards
•Complete reproducibility and steadily of results
•Well-defined measuring conditions
Specifications
|
Standards |
1)IEC 60711 Ed. 1.OB Occluded-ear simulator for the measurement of earphones coupled to the ear by ear inserts. 2)ITU-T Recommendation P.57 (08/96)“Series P: Telephone transmission quality, Objective measuring apparatus : Artificial ears |
|
Accessories include |
IEC60711 ear coupler |
|
Accessories additional |
ICP pressure microphone power supply PS200 |
|
Polarization voltage |
0 V |
|
Power supply |
2-20mA |
|
Max output voltage |
4.7Vrms |
|
Operating Temperature |
-20-80℃ |
|
Humidity |
0-98% RH |
|
Barometric pressure |
101.3 ± 3 kPa |
|
Dimensions |
77x60mm |
|
Weight |
1kg |
