193AB 仿真嘴



193AB-Mouth Simulator with built-in power amplifier

1. Introduction

  The Mouth Simulator Type 193AB(Fig. 1) designed by SoundFree LIMITED is a sound source which simulates the sound field around the human mouth and complies with the Standards IEEE 269 and ITU-T Rec. P51. It uses to test the frequency response of telephone of transmitters and communications microphones, 193AB is a stable, low distortion sound source used for the testing of acoustic transducers, At the mouth reference point (MRP), which is 35 mm from the detachable 193AA’s mouth, there are two ways to calibrate: at either 0° or 90° to the mouth axis. In both cases, simple adjustment allows the microphone to be correctly positioned at the MRP. The minimum-continuous equalized signal it can produce is 100 dB re. 20 μPa in the frequency range 100 Hz to 10 kHz. Its loudspeaker accepts an external signal directly via an input.



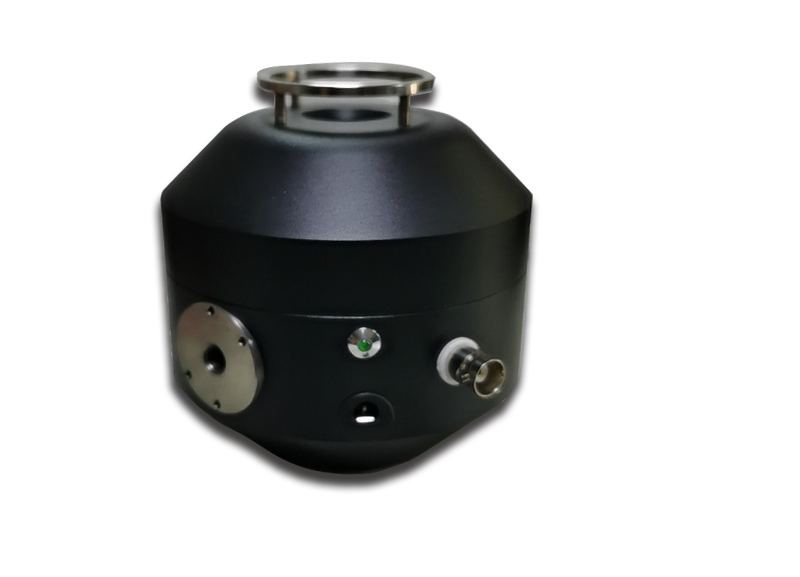

Fig.1  193AB

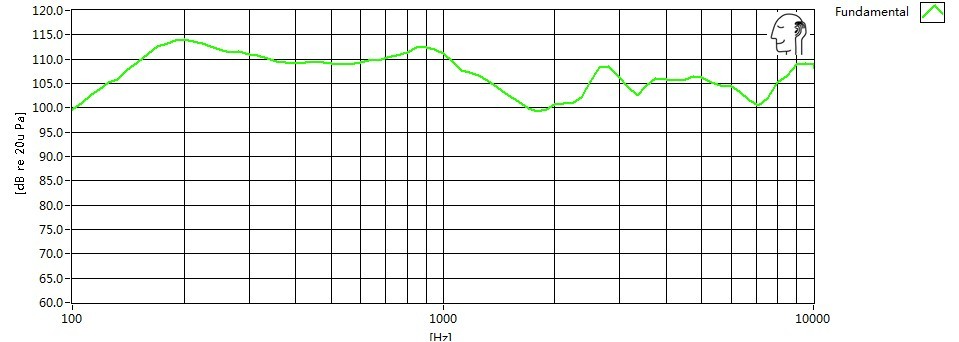

Frequency Response 1v @MRP

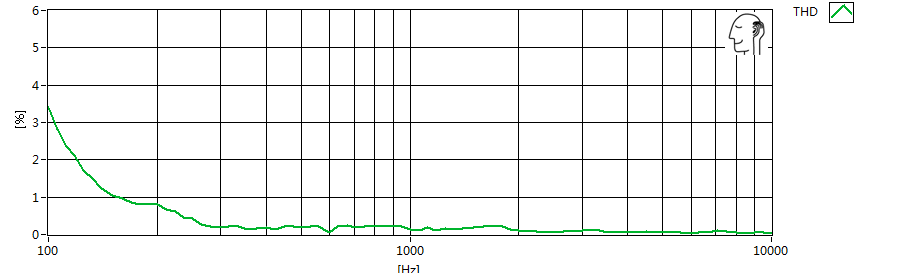

THD 1V@MRP

2. Specifications

Main Continuous output Level at MRP	Min. SPL of 110dB re.20upa 100Hz-10kHz
Distortion	<2%, 200Hz-300Hz, 94dBspl at MRP <1%, 300Hz-10kHz, 94dBspl at MRP
loudspeaker	Impedance: 4Ω Max power continuous :15w Max pulsed power:50w for 1s
Amplifier	Gain: 10dB Input Impedance：20kΩ
Mouth opening	20mm
Lip ring	External diameter: 48mm Distance from mouth: 10mm
Dimensions	Height:104mm Diameter: 104mm
Weight	About 1.3kg
